YES-EU 360 kW · 2 guns
Charging networks demand faster turnaround times and better user engagement; the YES-EU 360 kW · 2 guns Public DC Charger is our most powerful public station. Designed specifically for high-traffic public locations, this 360 kW station combines immense energy delivery with a premium 32-inch digital interface and integrated contactless payment, making it our flagship charger for modern municipalities and commercial operators.
-
Extreme Public Power
Generates 360 kW of total power (up to 500 A), with the ability to dynamically direct up to 270 kW to a single vehicle to drastically minimize charging times for all EVs, including heavy-duty transport.
-
Easy Payment
A built-in payment terminal lets drivers tap to pay, with no apps or subscriptions.
-
Premium Digital Canvas
Stands out with a massive 32-inch FullHD colour screen, perfect for delivering highly visible user instructions, engaging media, or public advertising.
-
Universal High-Voltage
Features a broad 200-1000 VDC output range, ensuring safe, future-proof charging for standard EVs as well as advanced 800 V high-capacity systems.
-
Extreme Climate Durability
Housed in an IP54-rated heavy-duty enclosure built to operate reliably indoors and outdoors, easily withstanding harsh European temperatures ranging from -30°C to +50°C.

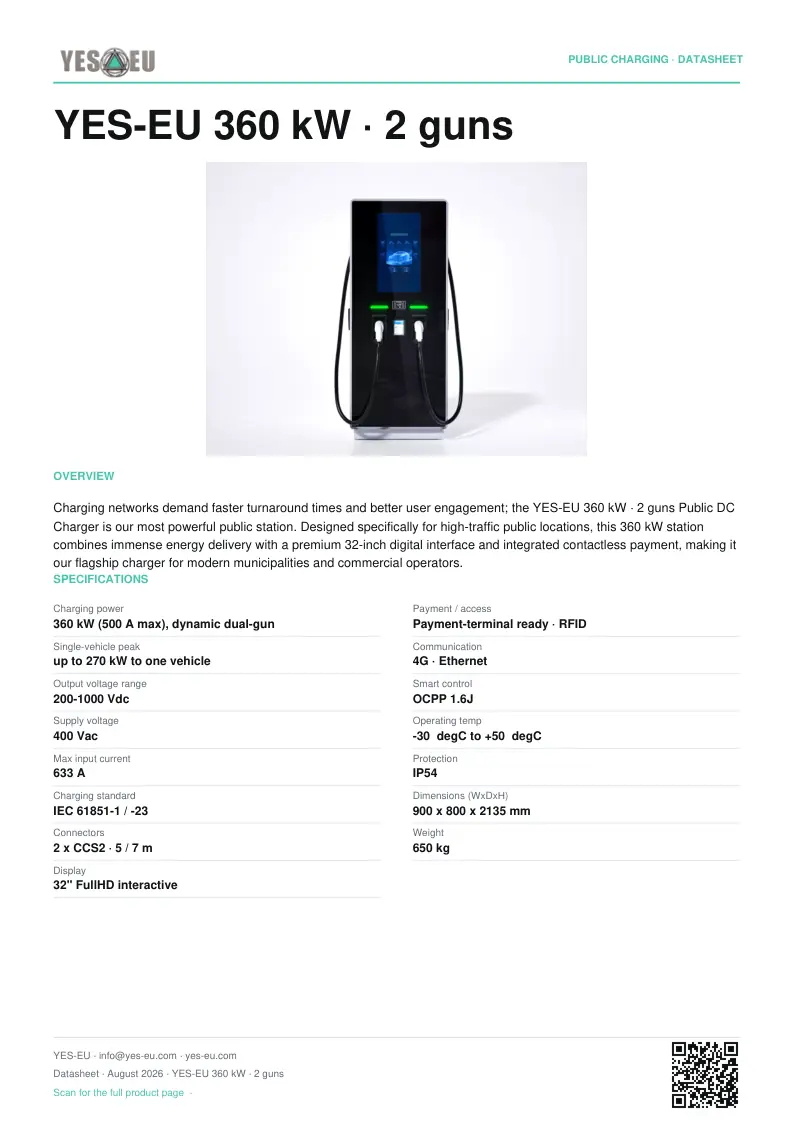

YES-EU 360 kW · 2 guns, full specification
| Specification | Value |
| Charging power | 360 kW (500 A max), dynamic dual-gun |
| Single-vehicle peak | up to 270 kW to one vehicle |
| Output voltage range | 200-1000 Vdc |
| Supply voltage | 400 Vac |
| Max input current | 633 A |
| Charging standard | IEC 61851-1 / -23 |
| Connectors | 2 × CCS2 · 5 / 7 m |
| Display | 32" FullHD interactive |
| Payment / access | Payment-terminal ready · RFID |
| Communication | 4G · Ethernet |
| Smart control | OCPP 1.6J |
| Operating temp | -30 °C to +50 °C |
| Protection | IP54 |
| Dimensions (W×D×H) | 900 × 800 × 2135 mm |
| Weight | 650 kg |
