YES-EU 120 kW · 2 guns
The YES-EU 120 kW · 2 guns Public DC Charger is the ideal high-capacity solution for busy locations, providing robust 120 kW power tailored specifically for public networks. With its built-in payment terminal and robust all-weather design, it provides swift, hassle-free top-ups for drivers while maximizing vehicle turnover at high-traffic sites.
-
Easy Public Access
A built-in payment terminal lets drivers tap to pay, with no subscriptions or extra apps.
-
High-Capacity Rapid Power
Intelligently allocates a robust 120 kW of energy across two CCS2 connections, ensuring rapid charging times for vehicles on the go.
-
Premium Digital Experience
Features a highly visible 10-inch color touchscreen combined with RFID authentication, providing clear, guided operation for all users regardless of their preferred payment method.
-
Universal & Future-Proof
Delivers an expansive 200-1000 VDC output to safely and rapidly charge standard EVs alongside advanced 800 V high-voltage architectures.

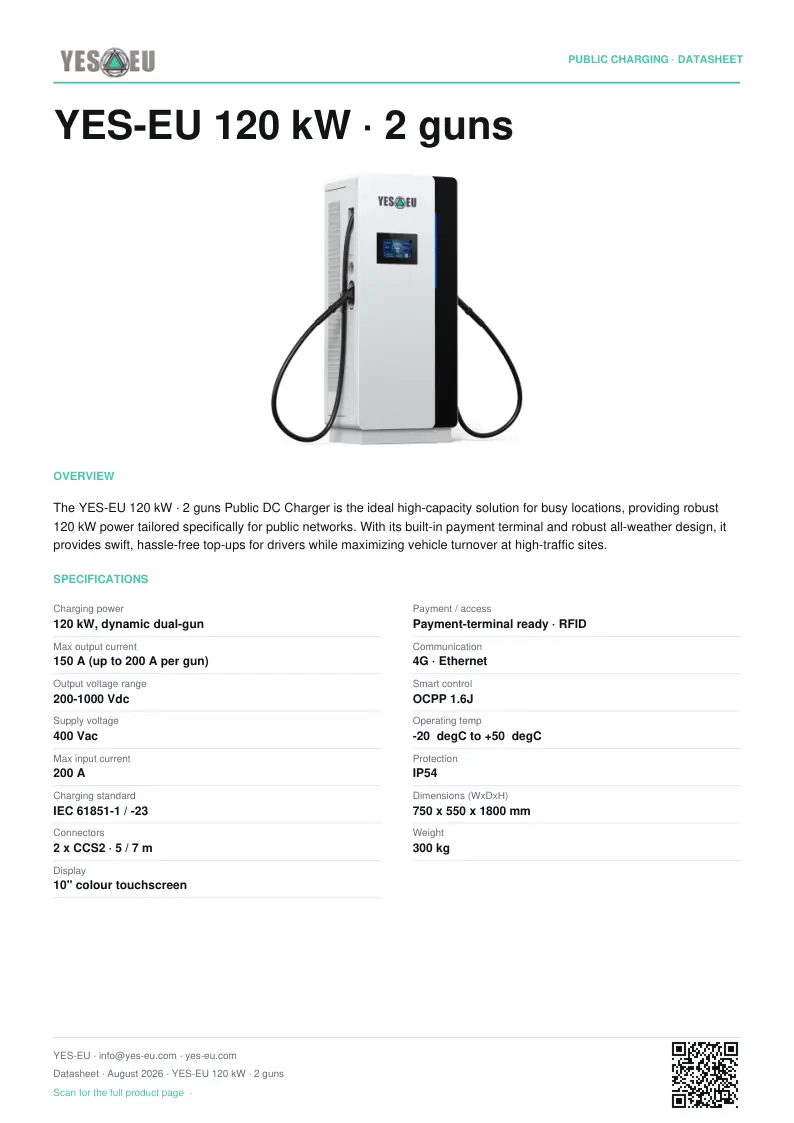

YES-EU 120 kW · 2 guns, full specification
| Specification | Value |
| Charging power | 120 kW, dynamic dual-gun |
| Max output current | 150 A (up to 200 A per gun) |
| Output voltage range | 200-1000 Vdc |
| Supply voltage | 400 Vac |
| Max input current | 200 A |
| Charging standard | IEC 61851-1 / -23 |
| Connectors | 2 × CCS2 · 5 / 7 m |
| Display | 10" colour touchscreen |
| Payment / access | Payment-terminal ready · RFID |
| Communication | 4G · Ethernet |
| Smart control | OCPP 1.6J |
| Operating temp | -20 °C to +50 °C |
| Protection | IP54 |
| Dimensions (W×D×H) | 750 × 550 × 1800 mm |
| Weight | 300 kg |
