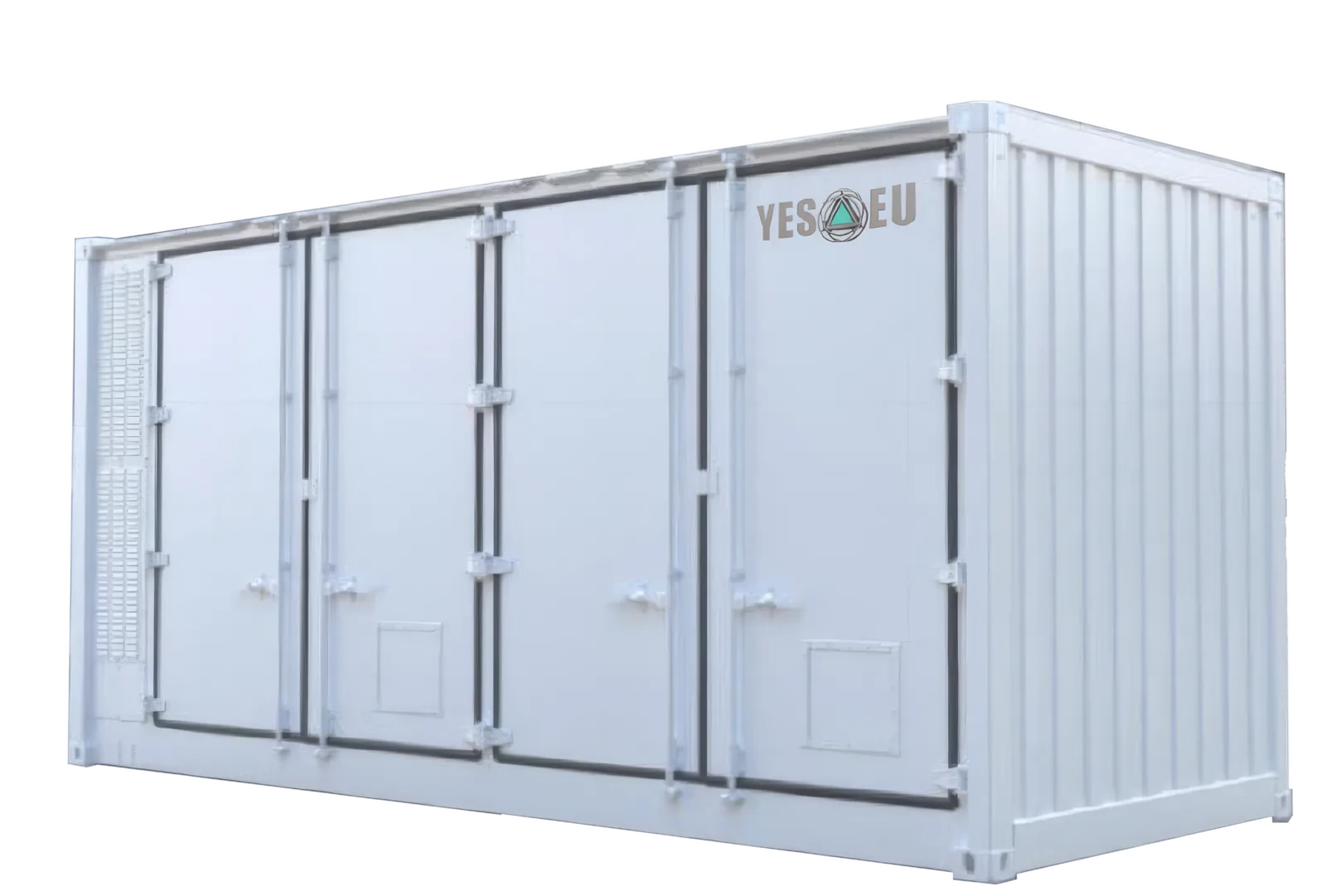

Containerized liquid cooling battery system EnerX.
50% more energy density. 38% less land. Rated capacity 5.6 MWh.
High-capacity storage in a smaller footprint.
This high-capacity storage solution delivers 50% more energy density in a smaller footprint, reducing land requirements by 38%. It is designed for fast set-up and simple operation, with one-click commissioning and more precise battery state readings that save time and manpower. The system maintains a high 96% efficiency, is built to withstand extreme climates, and works with mainstream power conversion systems, a safe, reliable asset for the long term.
Basic parameters.
| Parameter | Value |
|---|---|
| Basic parameters | |
| Configuration | 8P416S |
| Rated energy | ~5.6 MWh |
| Cell capacity | ~530 Ah |
| Working ratio | ≤ 0.5P |
| Rated voltage | ~1331.2 V |
| Voltage range | 1040 to 1500 V |
| IP level | IP55 |
| Product weight | ~45 T |
| Dimension | 6058 × 2438 × 2896 mm |
Lower storage costs, safety and easy maintenance.
-
Lower storage costs
High energy density: 385 kWh per square metre of ground area, 50% more than EnerC+. Needs 38% less land than EnerC+. High round-trip efficiency of about 96%. Long service life, with less than 4% cell degradation in the first year.
-
Safety Measurements
Designed to handle extreme climates and demanding sites. Safety built into every level of the system. Early warning across all working conditions. Multiple layers of fire protection for different fire stages.
-
Easy operation and maintenance
DC components arrive pre-installed in the 20-foot cabinet. One-click commissioning saves set-up time and manpower. More precise battery state readings. Compatible with mainstream power conversion systems, with flexible capacity expansion plans (3 or 5 years).
Testing and certifications
Discover more about EnerX.
Don't compromise on space or power. The liquid-cooled EnerX system delivers 385 kWh/m² with one-click commissioning. Speak with a YES-EU technical specialist today.
Contact our team
