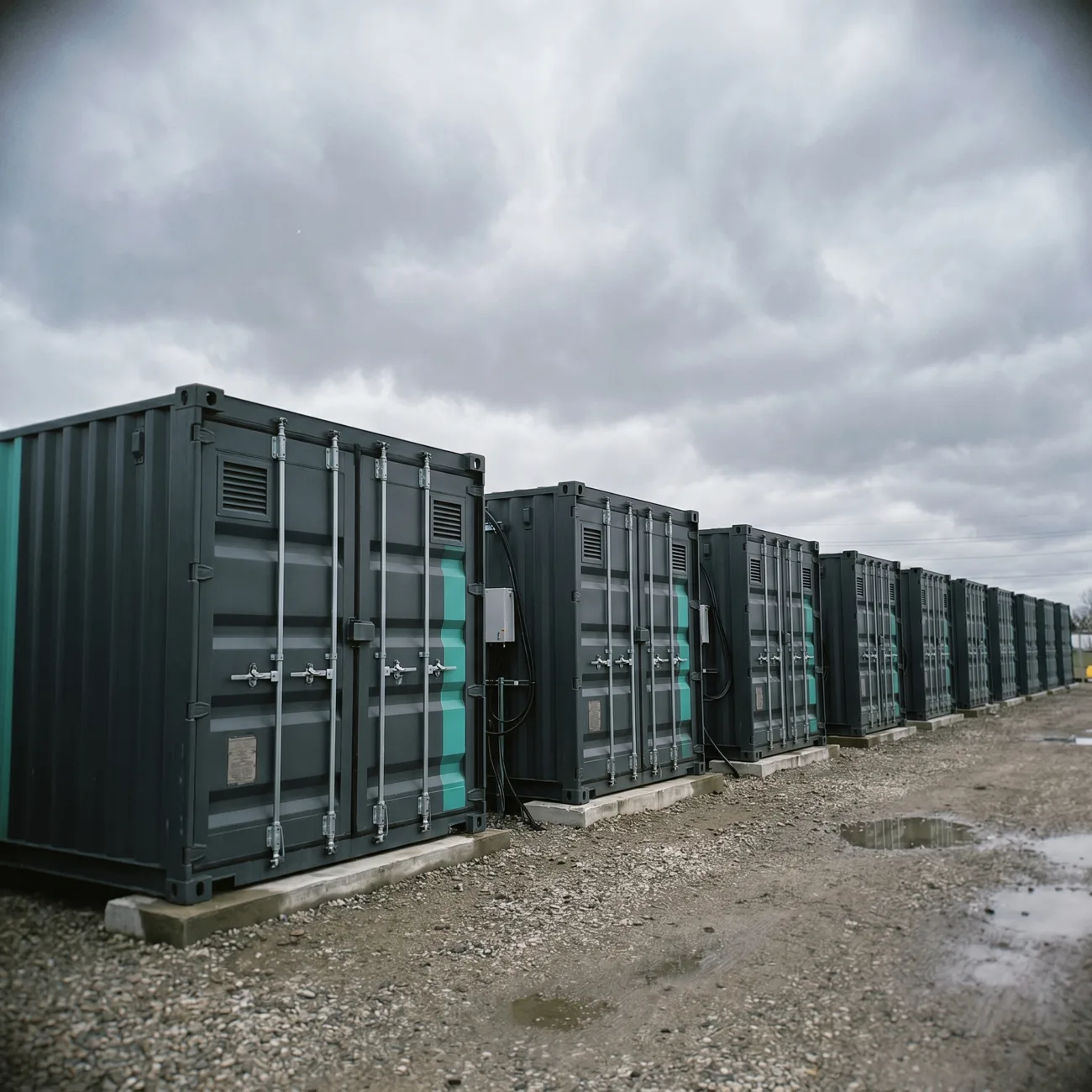

Containerized liquid cooling battery system EnerC+.
Future-proof technology for grid-scale stability. Rated capacity 3.72 MWh.
High-density, modular 1500V storage.
This high-density, modular 1500V energy storage system delivers up to 4.07 MWh in a standard 20-foot container. Its prefabricated, liquid-cooled design saves up to 50% of the space and cuts installation costs. Built for a long service life, it features IP55 outdoor protection, C5 corrosion resistance and stable LFP cells based on CATL technology, rated for up to 12,000 cycles. Safety comes first: a dedicated fire suppression system and optional explosion-proof fans protect the installation, a reliable solution for utility-scale projects.
Basic parameters.
| Parameter | Value |
|---|---|
| Basic parameters | |
| Module configuration | 5P*2P52S*8 |
| Cell capacity | 280 Ah / 280 Ah |
| Rated voltage | 1331.2 V |
| Rated energy | 3.72 MWh / 4.07 MWh |
| Product weight | 35 T / 36 T |
| IP level | IP55 |
| Dimension (L×W×H) | 6058 × 2438 × 2896 mm |
Safety, life and integration.
-
Safety Measurements
Stable LFP batteries. IP55 outdoor protection. C5 corrosion resistance and long-term reliability. Fire protection system. Explosion-proof fan option.
-
Long service life
Based on CATL technology, rated for up to 12 000 cycles. Liquid cooling keeps cell temperatures within 5°C.
-
High integration
Modular 1500V system. Separate electrical and battery rooms. 50% space saving. Optional DC/DC converters for battery cluster management. Prefabricated to cut installation costs and time.
Testing and certifications
