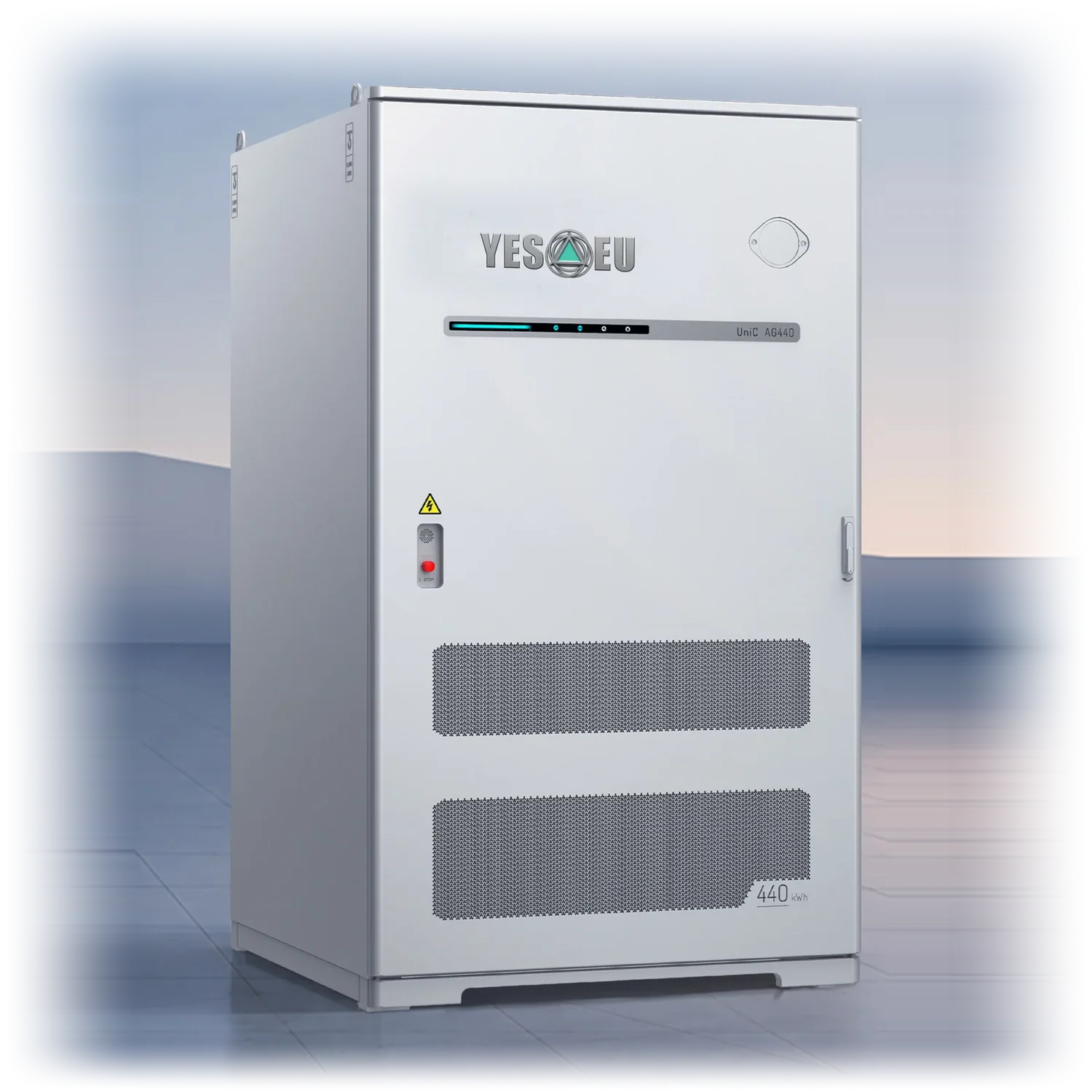

UniC AG440: high-performance new all-in-one C&I solution.
An all-in-one commercial and industrial battery energy storage cabinet, co-developed by YES-EU. 440.96 kWh in a single liquid-cooled, IP55 outdoor unit, built on 530 Ah cells in a 1P52S × 5S configuration. A dual-inverter design covers four system variants, internal or external inverter in a 2h or 4h configuration, from 92 kW to 220 kW. It delivers a 10,000-cycle service life and scales up to 45 units, roughly 20 MWh, per node.
Commercial and industrial storage in one cabinet.
The UniC AG440 packs 440.96 kWh into a single all-in-one cabinet with 50% higher energy density and 50% less floor space than 200 kWh units for the same capacity. Packs are liquid-cooled, the PCS is air-cooled, and the whole cabinet is delivered factory-assembled to cut on-site work and cost. On-grid and off-grid ready with a black start function on the internal-inverter variants, and compatible with local inverters where a project calls for them.
Denser, safer, built for the long term.
-
More energy, less space
50% higher energy density than 200 kWh units and 50% less floor space for the same capacity. Whole-cabinet delivery cuts on-site work and cost, so a single 1470 × 2490 × 1500 mm footprint carries the full 440.96 kWh.
-
Ultimate flexibility
Dual-inverter design, 2H and 4H compatible, with the inverter integrated at the factory or mounted externally on site. Compatible with local inverters, on-grid and off-grid multi-use ready, and scalable up to 45 units, roughly 20 MWh, per node.
-
Certified system-level safety
PPB level cell safety failure rate and reinforced electrical and mechanical design. Multi-level fire protection combines explosion venting, aerosol and water spray, and the system is UL9540A system-level thermal-runaway tested.
-
Grows with your business
10,000-cycle long life with 25% more throughput over the full lifespan. Available as a total solution with an STS cabinet, and backed by an Ampace and CATL local service network.
-
Reliable in cold weather
Enhanced thermal insulation design means no heating is required at −20 °C at one cycle per day, and the cabinet operates down to −30 °C. Rated across −25 °C to 55 °C with derating above 45 °C and above 2000 m.
-
Where it fits
Micro-grids, manufacturing plants, retail and supermarket sites, logistics centres and public facilities. IP55, C4-M corrosion rated as standard with C5-M optional, and rated to 3000 m altitude.
UniC AG440 system variants (all 440.96 kWh).
| Parameter | Internal Inverter · 2h | Internal Inverter · 4h | External Inverter · 2h | External Inverter · 4h |
| System configuration | 220 kW / 440.96 kWh | 110 kW / 440.96 kWh | 184 kW / 440.96 kWh | 92 kW / 440.96 kWh |
| Rated AC voltage | 3P4W, 400 V | 3P4W, 400 V | 3P3W, 400 V | 3P3W, 400 V |
| Frequency range | 47.5–52.5 Hz / 57.5–62.5 Hz | 47.5–52.5 Hz / 57.5–62.5 Hz | 45–65 Hz | 45–65 Hz |
| Max charge / discharge power | 0.5CP / 0.5CP | 0.25CP / 0.25CP | 0.5CP / 0.5CP | 0.25CP / 0.25CP |
| Max AC current | 349.3 A | 174.6 A | 292.1 A | 146 A |
| Backup function (black start) | Yes | Yes | No | No |
| PCS installation method | Factory assembly, integrated | Factory assembly, integrated | On site assembly, external mounted | On site assembly, external mounted |
| Weight | ~5000 kg | ~5000 kg | ~4950 kg | ~4950 kg |
Shared specifications.
| Parameter | Value |
|---|---|
| Battery & electrical | |
| Module configuration | 530 Ah, 1P52S × 5S |
| System energy | 440.96 kWh |
| Rated frequency | 50 / 60 Hz |
| THDv | ≤ 3% |
| Enclosure & environment | |
| Cooling mode | Pack: liquid cooling · PCS: air cooling |
| Operation temperature | −25 °C to 55 °C (>45 °C derating) |
| Operating humidity | 5–95% RH (no condensation) |
| IP rating | IP55 |
| Corrosion rating | C4-M (C5-M optional) |
| Altitude | 3000 m (>2000 m derating) |
| Dimension (W×H×D) | 1470 × 2490 × 1500 mm |
| Noise | 65 dB |
| Interfaces | Ethernet · RS485 |
| Fire & safety system (FFS) | |
| Detection | Smoke sensor · heat sensor · gas sensor · audible & visual alarm |
| Suppression | Aerosol · water port · explosion venting panel |
| Ventilation | Ventilation system |
| Grid codes | |
| Internal inverter variants | Germany (VDE4105/4110/4120) · Italy · Spain · Poland · UK · Greece · Norway · Sweden · Finland · Netherlands · Bulgaria · Belgium · Israel · Australia |
| External inverter variants | Germany (VDE4105/4110/4120) · UK · Greece · Norway · Netherlands · Sweden · Bulgaria · Belgium |
| Service life | |
| Cycle life | 10,000 cycles |
| Throughput | +25% over the full lifespan |
| Scalability | Up to 45 units, roughly 20 MWh per node |
Testing and certifications
